Dirty Saw Head Slide: Symptoms and Cleaning

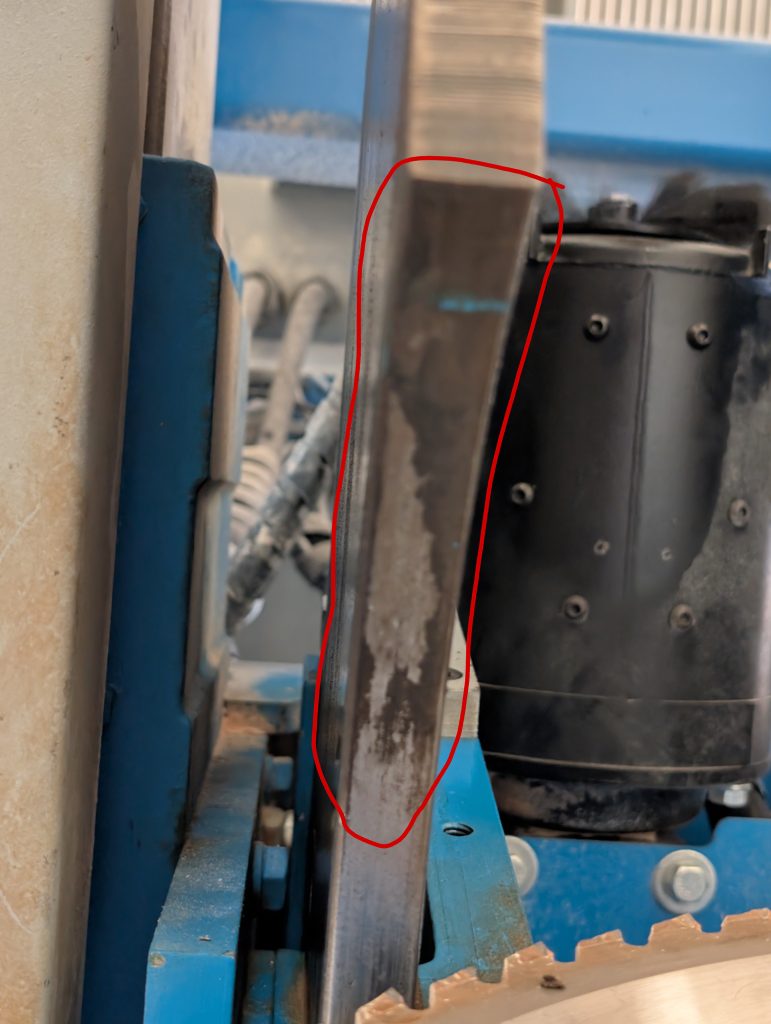

The circled area in the photo shows a saw head slide with heavy contamination. Sawdust, resin, and dried lubricant can collect on the slide and restrict smooth angle movement. Cleaning the buildup early helps prevent unnecessary wear and makes other angle-position problems easier to diagnose.

Possible symptoms

• Visible dark, sticky, or packed material on the slide surface.
• Angle movement that is rough, hesitant, or noisier than normal.
• The head requires more effort to move through part of its travel.
• Positioning problems that improve temporarily after the slide is cleaned.

Safety: Stop the saw, remove energy using the facility’s lockout/tagout procedure, and verify that the head cannot move before reaching into the saw head area.

Inspection

1. Inspect the full accessible length of the slide, not only the exposed section in the photo.
2. Check the pocket behind the slide and the lower drain area for packed sawdust or resin.
3. Look for scoring, rust, loose hardware, or metal damage after the contamination is removed.
4. Do not use a tool that can gouge the finished slide surface.

Correction and verification

Follow Cleaning the Saw Head Slides to flush the hidden areas and lubricate the slide. After cleaning, reinstall all guards, remove tools and supplies, and test the angle movement through its normal range at a controlled speed.

• The movement should be smooth and repeatable.
• No cleaner, rags, or loose debris should remain in the mechanism.
• If the movement still binds, makes abnormal noise, or loses position, stop the test and contact Enventek Support. The problem may require inspection of the slide, drive, encoder, chain, or pivot calibration.
